Products > Optical Elements > Filters > Band Pass Filters
Band Pass Filters

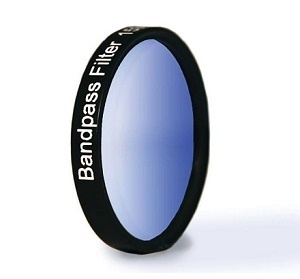

Product name : Band Pass Filters
Product No. : 20219313651
Material : Optical Lens
Size : Semiband Width: 5nm;10nm; 20nm; 30nm, 50nm or custom
Density(g/cm3) :
Refractive Index :
Form : Disc, Square
Purity :
Application : fluorescence analyzer, enzyme marker, cable TV upgrade equipment, wireless transmission equipment, mobile phone bar code scanning, infrared electronic whiteboard, infrared camera, infrared touch screen, iris recognition, infrared medical instrument, infrared ink recognition, red film recognition, face recognition sensor system. Hand held infrared laser rangefinder, laser rangefinder, optical instruments, medical and health equipment and testing instruments.
←[Previous Product]
Online Inquiry         Email Us

Central wavelength: 245-1064nm
Semiband width: 5nm; 10nm; 20nm; 30nm, 50nm or custom
Cut off range: 200-1200nm
Optical density: OD3; OD4; OD5; OD6
Dimensional tolerance: 0.5-600±0.02mm
Luminous aperture: ≥90%
Thickness tolerance: 0.3-50±0.02mm
Facial form: 1/10 λ
Surface quality: 10-5
Chamfer: 45° × 0.2mm
Coating:  customized
